I

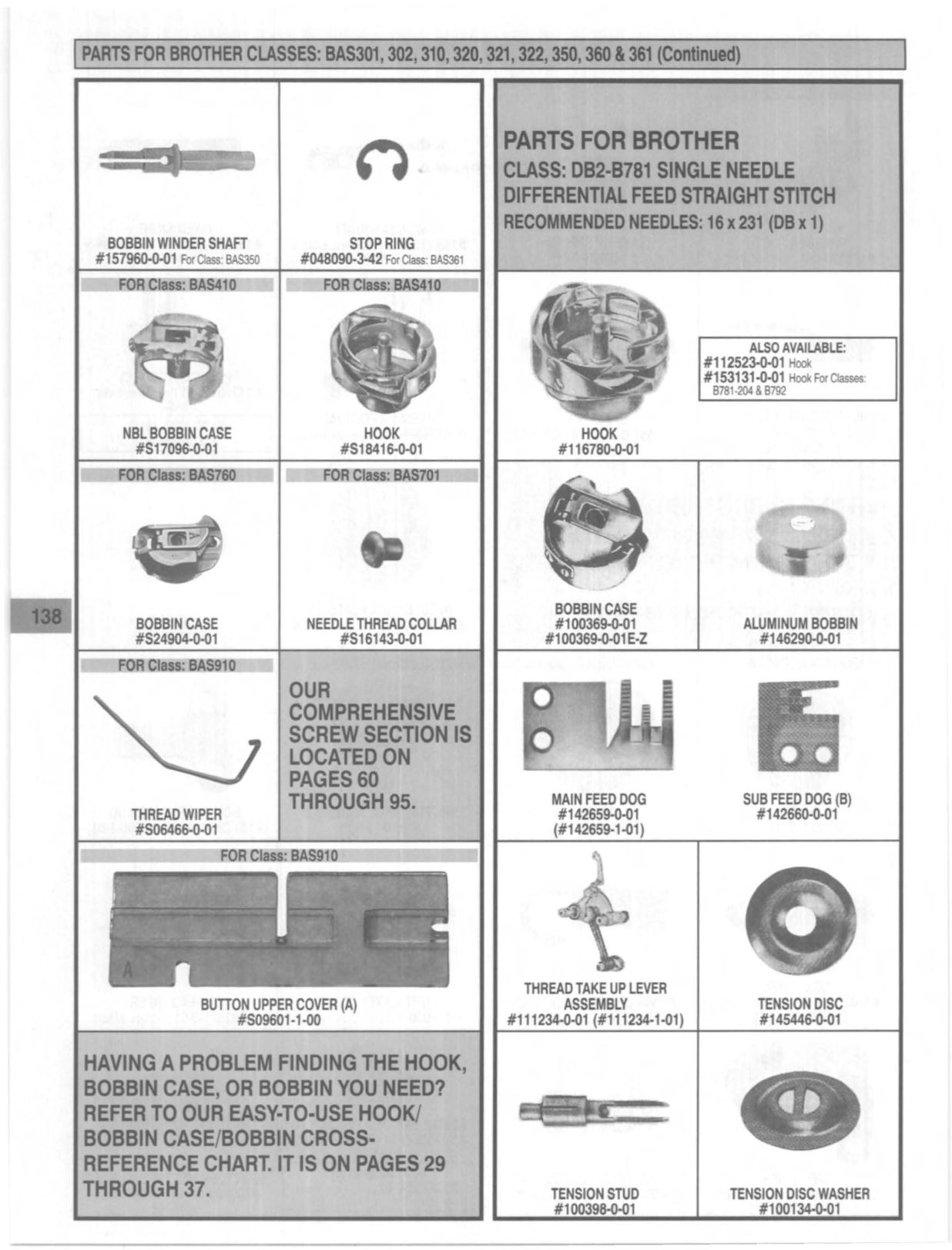

PARTS FOR BROTHER CLASSES: BAS301, 302, 310, 320, 321, 322, 350, 360.361
(ContInued)
BOBBIN WINDER SHAfT
#157960-0-01
For
Class:
BAS350
FOR
Class: BAS4fO
NBL BOBBIN CASE
#517096-0-01
FOR
Class:
BAS760
BOBBIN CASE
#524904-0-01
FOR
Class:
BAS910
THREAD WIPER
#506466-0-01
STOP RING
#04809().3-42
ForOass: BAS361
-
FOR
Class: BAS4fO
HOOK
#518416-0-01
FOR
Class:
BAS701
NEEDLE THREAD COLLAR
#516143-0-01
OUR
COMPREHENSIVE
SCREW SECTION IS
LOCATED ON
PAGES 60
THROUGH 95.
'--____FOR
C18ss:
BAS910_____
BunON UPPER COVER (A)
#509601-1-00
HAVING APROBLEM FINDING THE HOOK,
BOBBIN CASE, OR BOBBIN YOU NEED?
REFER TO OUR EASY-TO-USE HOOK!
BOBBIN CASE/BOBBIN CROSS·
REFERENCE CHART. IT IS ON PAGES 29
THROUGH 37.
I
PARTS FOR BROTHER
CLASS: D82-8781 SINGLE NEEDLE
DIFFERENTIAL FEED STRAIGHT STITCH
RECOMMENDED NEEDLES: 16
x
231 (DB
x
1)
HOOK
#116780-0-01
BOBBIN CASE
#100369-0-01
#100369-0-01E-Z
MAIN FEED DOG
#142659-0-01
(#142659-1-01)
THREAD TAKE UP LEVER
ASSEMBLY
#111234-0-01 (#111234-1-01)
TENSION STUD
#100398-0-01
ALSO AVAILABLE;
#112523-0-01
Hook
# 153131-0-01
Hook For Classes
B781·204
&
B792
ALUMINUM BOBBIN
#146290-0-01
SUB FEED DOG (8)
#142660-0-01
TENSION DISC
#145446-0-01
TENSION DISC WASHER
#100134-0-01
