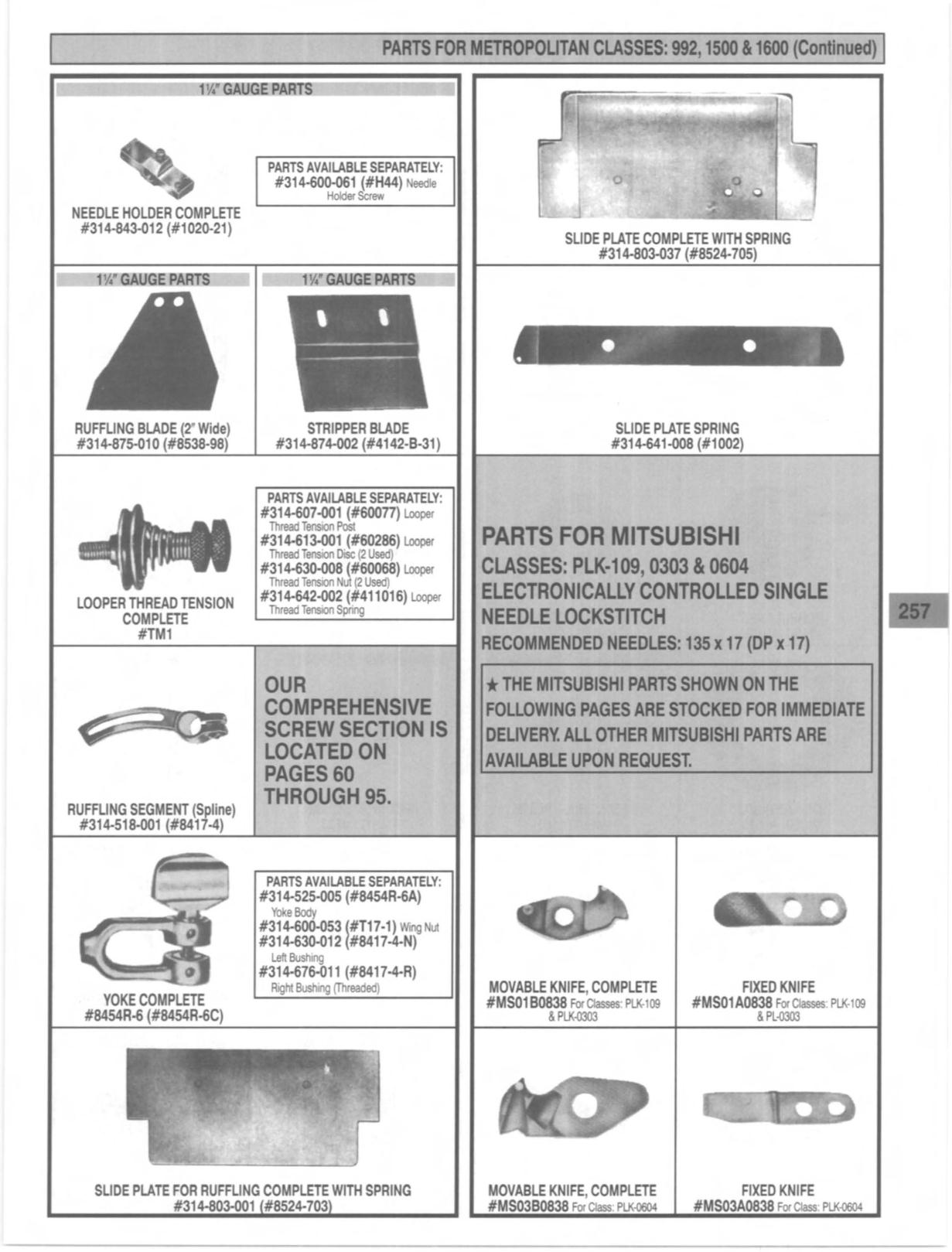

PARTS FOR METROPOUTAN CLASSES: 992, 1500 &1600 (Continued)
I
'---_____114
GAUGEPARTS_~
__
~~
NEEDLE HOLDER COMPLETE
#314-843-012 (#1020-21)
RUFFLING BLADE (2"Wide)
#314-875-010 (#8538-98)
LOOPER THREAD TENSION
COMPLETE
#TM1
RUFFLING SEGMENT (Spline)
#314-518-001 (#8417-4)
YOKE COMPLETE
#8454R-6 (#8454R-6C)
PARTS AVAILABLE SEPARATELY:
#314-600-061 (#H44)
Needle
Holder
Screw
STRIPPER BLADE
#314-874-002 (#4142-B-31)
PARTS AVAILABLE SEPARATELY:
#314-607-001 (#6oon)
Looper
Thread TenslOl1
Post
#314-613-001 (#60286)
Looper
Thread Tension
DIsc
(2 Used)
#314-630-008 (#60068)
Looper
Thread TenslOl1 Nut (2 Used)
#314·642-002 (#411016)
Looper
Thread
TensIOI1 Spong
OUR
COMPREHENSIVE
SCREW SECTION IS
LOCATED ON
PAGES 60
THROUGH 95.
PARTS AVAILABLE SEPARATELY:
#314-525-005 (#8454R-6A)
Yoke
Body
#314-600-053 (#T17-1)
Wing
Nut
#314-630-012 (#8417-4·N)
LefiBushlng
#314-676-011 (#8417·4·R)
Right
Bushll19
(Threaded)
SUDE PLATE COMPl8E WITH SPRING
#314-803-037 (#8524-705)
SLIDE PLATE SPRING
#314-641-008 (#1002)
PARTS FOR MITSUBISHI
CLASSES: PLK·109, 0303
&
0604
ELECTRONICALLY CONTROLLED SINGLE
NEEDLE LOCKSTITCH
RECOMMENDED NEEDLES: 135
X
17 (DP
X
17)
*
THE MITSUBISHI PARTS SHOWN ON THE
FOLLOWING PAGES ARE STOCKED FOR IMMEDIATE
DEUVERY. ALL OTHER MITSUBISHI PARTS ARE
AVAILABLE UPON REQUEST.
MOVABLE KNIFE, COMPlETE
#MS01B0838
ForQasses:
PlK-l09
&
PLK-0003
MOVABLE KNIFE, COMPLETE
#MS03B0838
For
Oass: PlK-0604
FIXED KNIFE
#MS01A0838
For
Classes.
PLK-l09
&
PL-0303
FIXED KNIFE
#MS03A0838
For
Class:
PLK-0604
