I

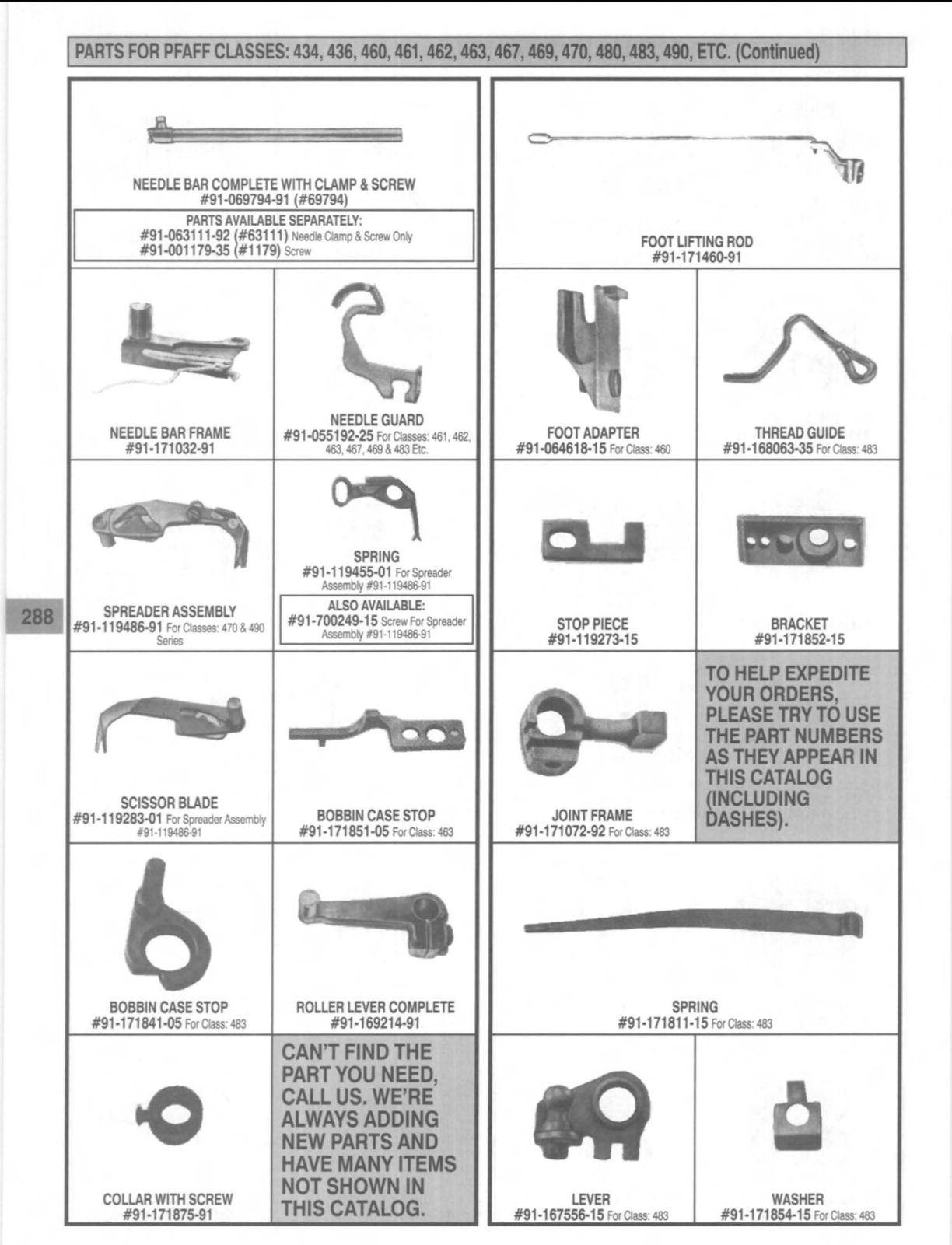

PARTS FOR PFAFF CLASSES: 434,436,460,461,462,463,467,469,470,480,483,490, ETC. (Continued)
NEEDLE BAR COMPLETE WITH CLAMP
&
SCREW
#91-069794-91 (#69794)
PARTS AVAILABLE SEPARATELY:
#91-063111-92 (#63111) eedleClamp&ScrewOnly
#91-001179-35 (#1179) Screw
NEEDLE BAR FRAME
#91-171032-91
SPREADER ASSEMBLY
#91-119486-91
ForCtasses
470&490
Senes
SCISSOR BLADE
NEEDLE GUARD
#91-055192-25
ForCtasses 461
462,
463, 467,469
&
483 Etc.
SPRING
#91-119455-01
For
Spreader
Assembly
191·119486-91
ALSO AVAILABLE:
#91-700249-15
Screw
For Spreader
Assembly
191·119486-91
#91-119283-01
For Spreader
Assembly
BOBBIN CASE STOP
191·119486-91
#91-171851-05 For
Class
463
BOBBIN CASE STOP
#91-171841-05
For
Class
483
COLLAR WITH SCREW
#91-171875-91
ROLLER LEVER COMPLETE
#91·169214·91
CAN'T FIND THE
PART YOU NEED,
CALL US.
WE'RE
ALWAYS ADDING
NEW PARTS AND
HAVE MANY ITEMS
NOT SHOWN IN
THIS CATALOG.
FOOT LIFTING ROD
#91-171460-91
FOOT ADAPTER
#91-064618-15
For
Class
460
STOP PIECE
#91·119273-15
JOINT FRAME
#91·171072·92
For
Class
483
THREAD GUIDE
#91-168063-35
For
Class 483
~
..
-
-
\ ..
~.~l:
BRACKET
#91-171852-15
TO HELP EXPEDITE
YOUR ORDERS,
PLEASE TRY TO USE
THE PART NUMBERS
AS THEY APPEAR IN
THIS CATALOG
(INCLUDING
DASHES).
SPRING
#91-171811·15
For
Class. 483
LEVER
#91·167556-15
For
Class:
483
WASHER
#91-171854-15
For
Class
483
