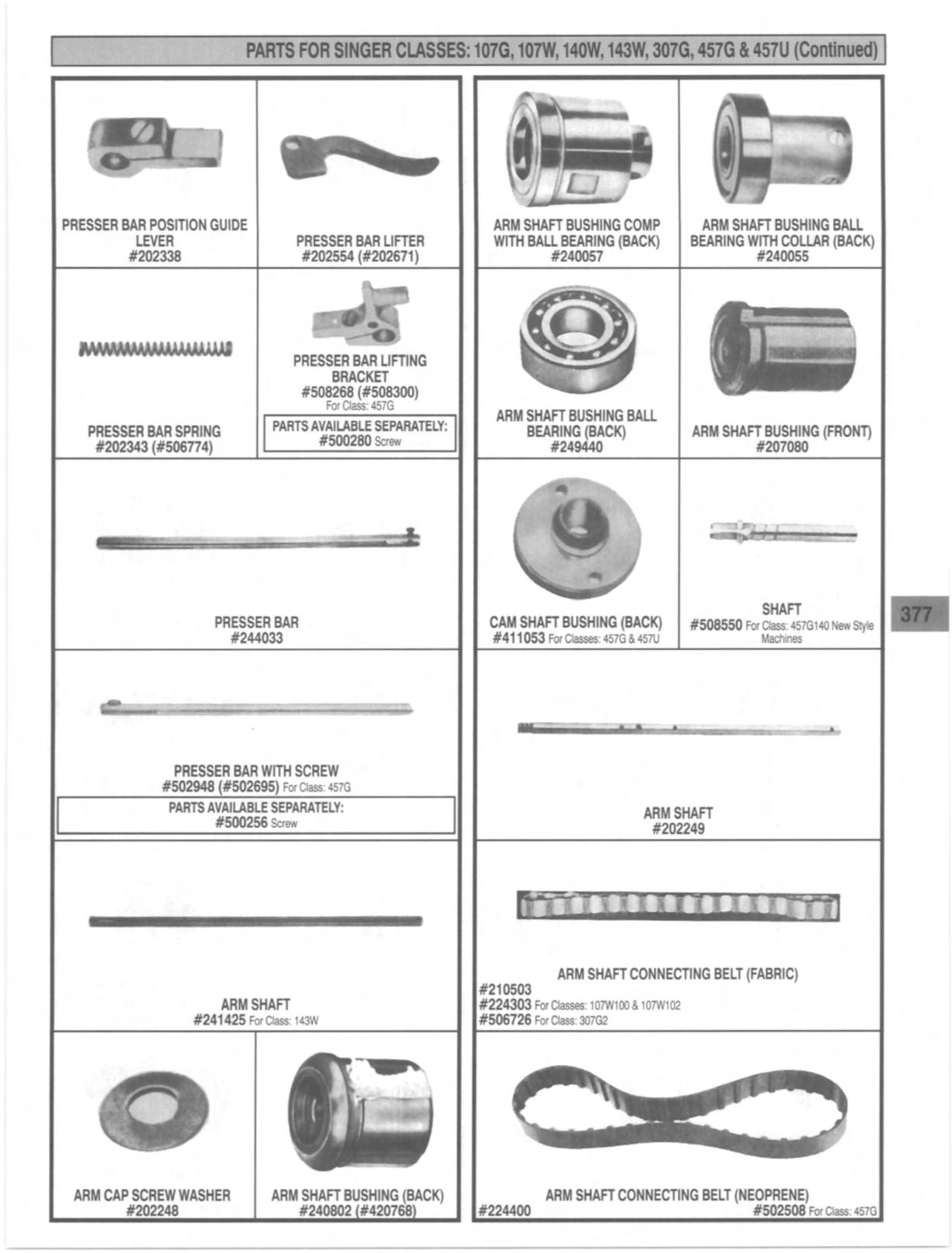

PARTS FOR SINGER CLASSES: l07G, 107W, l4OW, 143W, 307G, 457G 6457U

(ContInued)

PRESSER BAR POSITION GUIDE

LEVER

#202338

PRESSER BAR SPRING

#202343 (#506n4)

PRESSER BAR UFTER

#202554 (#202671)

PRESSER BAR UFTING

BRACKET

#508268 (#508300)

For

Class: 457G

PARTS AVAILABLE SEPARATELY:

#500280

Screw

PRESSER BAR

#244033

PRESSER BAR WITH SCREW

#502948 (#502695)

ForClass:4S7G

PARTS AVAILABLE SEPARATELY:

#500256

Screw

ARM SHAFT

#241425

For

Class: 143W

ARM CAP SCREW WASHER

#202248

ARM SHAFT BUSHING COMP

WITH BALL BEARING (BACK)

#240057

ARM SHAFT BUSHING BALL

BEARING (BACK)

#249440

ARM SHAFT BUSHING BAll

BEARING WITH COLLAR (BACK)

#240055

ARM SHAFT BUSHING (FRONT)

#207080

SHAFT

CAM SHAFT BUSHING (BACK)

#508550

For

Class

457Gl40 New

Sty1e

#411053

For Classes: 457G &457U

Machines

ARM SHAFT

#202249

ARM SHAFT CONNECTING BELT (FABRIC)

#210503

#224303

For

Classes:

107Wl 00

107Wl02

#506726

For

Class:

307G2

ARM SHAFT CONNECTING BELT (NEOPRENE)

#224400

#502508

For

Class: 457G
