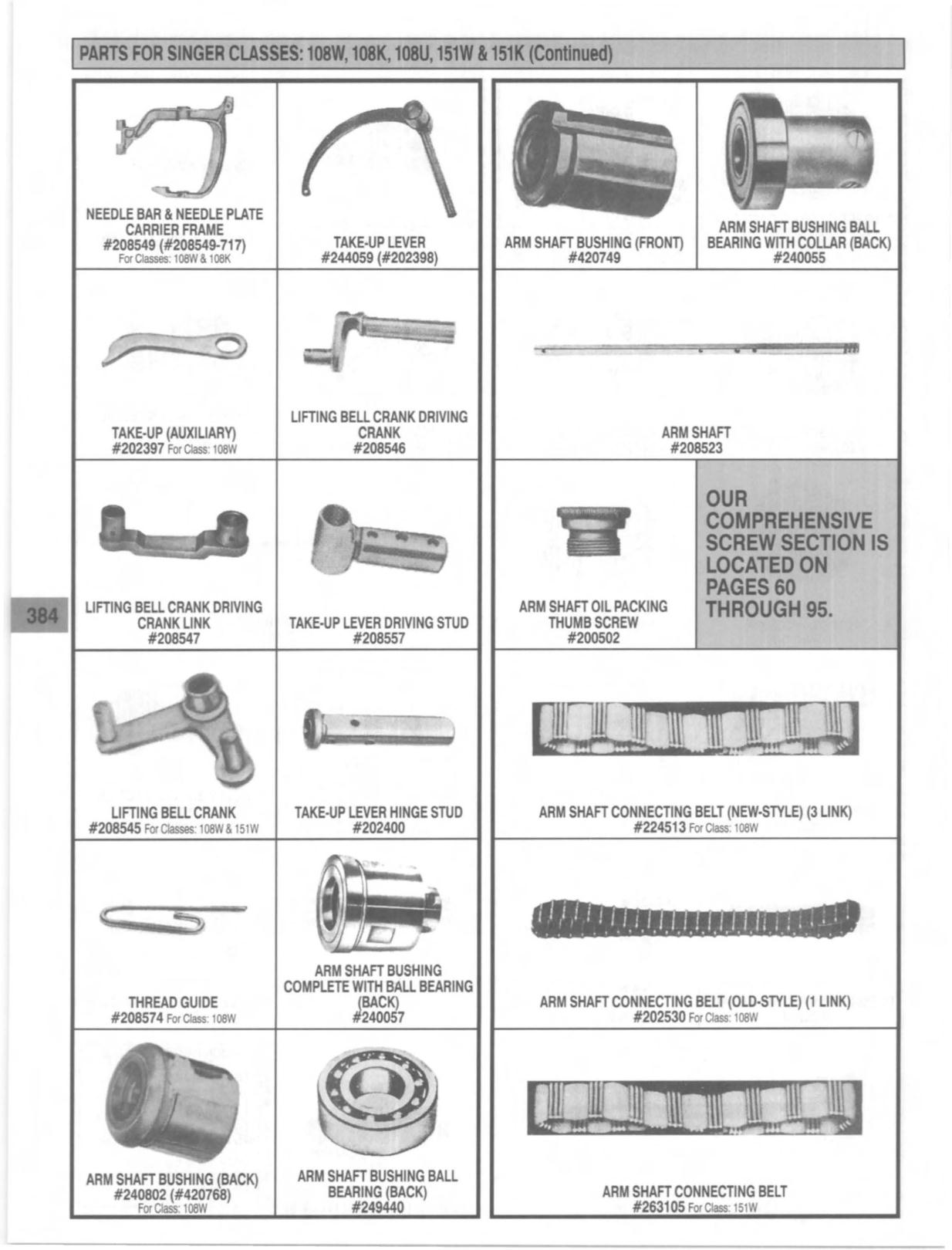

PARTS FOR SINGER CLASSES: 108W, 108K, l08U, 151W , 151K (Continued)
NEEDLE BAR
&
NEEDLE PLATE
CARRIER FRAME
#208549 (#208549-717)
for
Classes: 106W
&
I08K
TAKE-UP (AUXILIARY)
#202397
For
Class.
t08W
LIFTING BELL CRANK DRIVING
TAKE-UP LEVER
#244059 (#202398)
LIFTING BELL CRANK DRIVING
CRANK
#208546
CRANK LINK
TAKE-UP LEVER DRIVING STUD
#208547
#208557
LIFTING BELL CRANK
#208545
For
Classes:
l08W& 151W
THREAD GUIDE
#208574
For
Class: l08W
ARM SHAFT BUSHING (BACK)
#240802 (#420768)
For
Class:
108W
•
TAKE-UP LEVER H'INGE STUD
#202400
ARM SHAFT BUSHING
COMPLETE WITH BALL BEARING
(BACK)
#240057
ARM SHAFT BUSHING BALL
BEARING (BACK)
#249440
,--
(f
, __
'/
ARM SHAFT BUSHING BALL
ARM SHAFT BUSHING (FRONT)
BEARING WITH COLLAR (BACK)
#420749
#240055
ARM SHAFT
#208523
ARM SHAFT OIL PACKING
THUMBSCREW
#200502
OUR
COMPREHENSIVE
SCREW SECTION IS
LOCATED ON
PAGES 60
THROUGH 95.
ARM SHAFT CONNECTING BELT (NEW-STYLE) (3 LINK)
#224513
For
Class: I08W
ARM SHAFT CONNECTING BELT (OLD-STYLE) (1 LINK)
#202530
For
Class: l08W
ARM SHAFT CONNECTING BELT
#263105
For
Class:
151W
