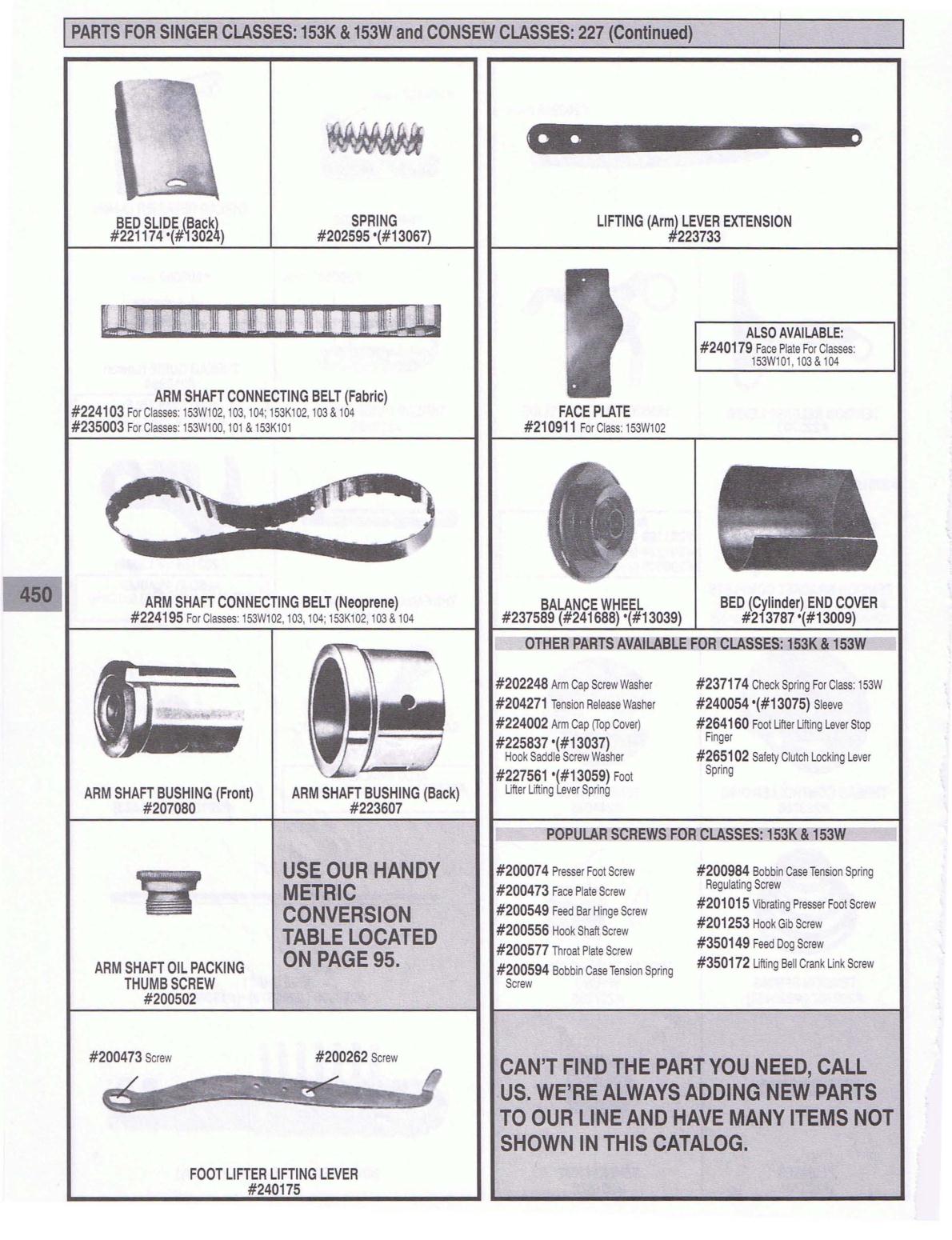

PARTS FOR SINGER CLASSES: 153K &153W and CONSEW CLASSES: 227 (Continued)
BED SLIDE (Back)
#221174
'(#~3024)
SPRING
#202595 '(#13067)
ARM SHAFT CONNECTING BELT (Fabric)
#224103
For Classes: 153W102, 103, 104; 153K102, 103 &104
#235003
For Classes: 153W100, 101 &153K101
ARM SHAFT CONNECTING BELT (Neoprene)
#224195
For Classes: 153W102, 103, 104; 153K102, 103& 104
ARM SHAFT BUSHING (Front)
#207080
ARM SHAFT OIL PACKING
THUMBSCREW
#200502
#200473
Screw
ARM SHAFT BUSHING (Back)
#223607
USE OUR HANDY
METRIC
CONVERSION
TABLE LOCATED
ON
PAGE 95.
#200262
Screw
FOOT LIFTER LIFTING LEVER
#240175
LIFTING (Arm) LEVER EXTENSION
#223733
FACE PLATE
#210911
For Class: 153W102
BALANCE WHEEL
#237589 (#241688) '(#13039)
ALSO AVAILABLE:
#240179
Face Plate For Classes:
153W101 , 103 &104
BED (Cylinder) END COVER
#213787 '(#13009)
OTHER PARTS AVAILA-aLE FOR CLASSE.S:
153K
&
153W
#202248
Arm Cap Screw Washer
#204271
Tension Release Washer
#224002
Arm Cap (Top Cover)
#225837 '(#13037)
Hook Saddle Screw Washer
#227561 '(#13059)
Foot
Ufter Lifting Lever Spring
#237174
Check Spring For Class: 153W
#240054 '(#13075)
Sleeve
#264160
Foot Utter Utting Lever Stop
Finger
#265102
Safety Clutch LockingLever
Spring
POPULAR SCREWS
FOll
CLASSES:
153K
&
153W
#200074
Presser Foot Screw
#200473
Face Plate Screw
#200549
FeedBar Hinge Screw
#200556
Hook Shaft Screw
#200577
Throat Plate Screw
#200594
Bobbin Case Tension Spring
Screw
#200984
BobbinCase Tension Spring
Regulating Screw
#201015
Vibrating Presser Foot Screw
#201253
Hook Gib Screw
#350149
Feed Dog Screw
#350172
Lifting Bell Crank Link Screw
CAN'T FIND THE PART YOU NEED, CALL
US. WE'RE ALWAYS ADDING NEW PARTS
TO OUR LINE AND HAVE MANY ITEMS NOT
SHOWN IN THIS CATALOG.
