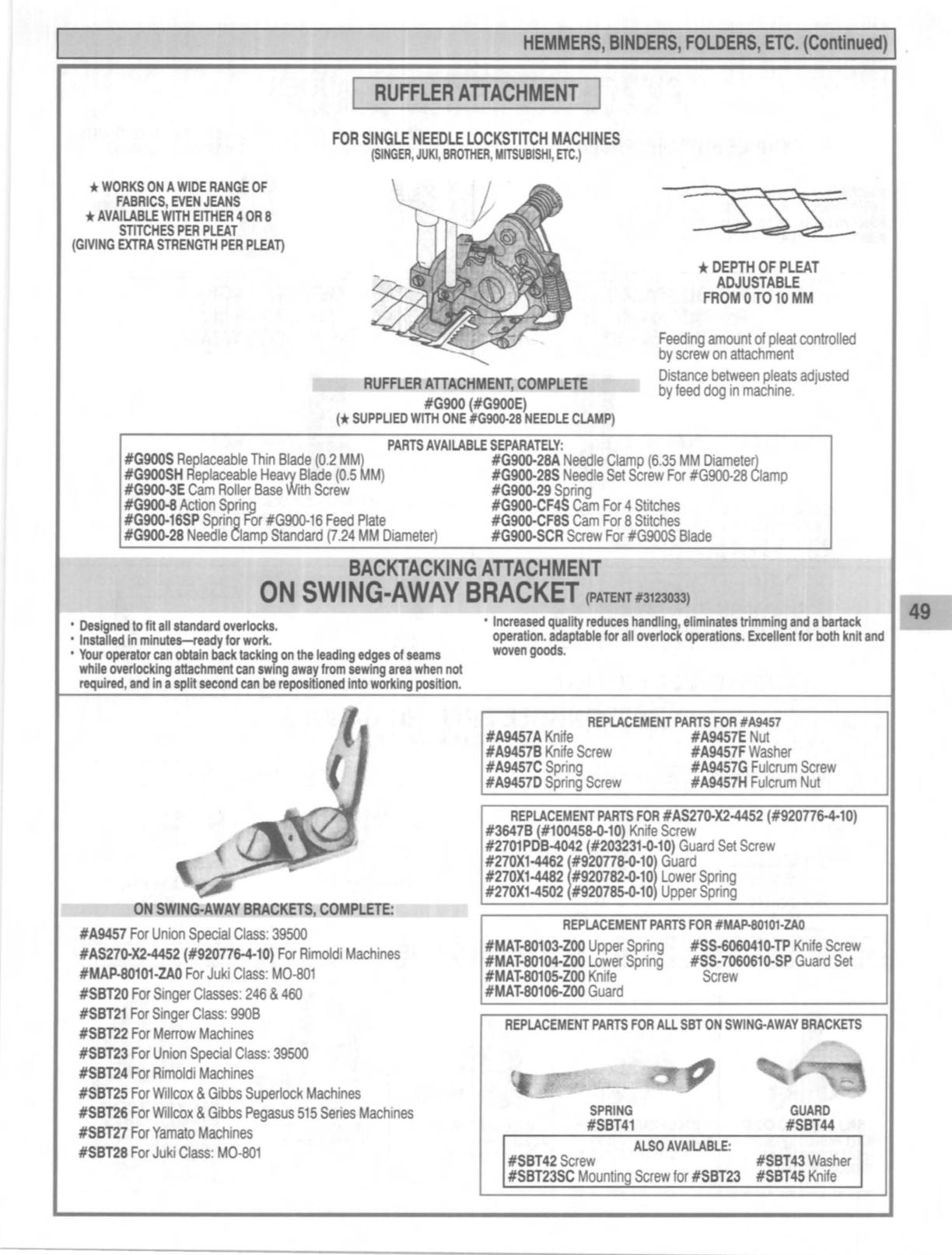

HEMMERS, BINDERS, FOLDERS, ETC. (Continued)
I
RUFFLER ATTACHMENT
I
FOR SINGLE NEEDLE LOCKSTITCH MACHINES
(SINGER, JUKI, BROTHER, MfTSUBISHI, ETC.)
*
WORKS ON AWIDE RANGE OF
FABRICS,
EVEN JEANS
*
AVAILABLE WITH EITHER 4OR 8
STITCHES PER
PLEAT
(GIVING
EXTRA STRENGTH PER PlEAll
*
DEPTH OF PLEAT
ADJUSTABLE
FROM 0TO 10 MM
Feeding amount of pleat controlled
by screw on attachment
RUFFLER ATTACHMENT, COMPLETE
#G900 (#G900E)
(*
SUPPLIED WITH ONE #G900-28 NEEDLE
CLAMP)
Distance between pleats adjusted
by feed dog in machine.
PARTS AVAILABLE SEPARATELY:
#G900S Replaceable Thin Blade (0.2MM)
#G900-28A Needle Clamp (6.35 MM Diameter)
#G900SH Replaceable Heavy Blade (0.5MM)
#G9()()"28S Needle Set Screw For #G900-28 Clamp
#G900-3E Cam Roller
Base With
Screw
#G9()()"29 Spring
#G900-8
Action Spring
#G9()()..CF4S Cam For
4
Stitches
#G900-16SP Spring For #G900-16 Feed Plate
#G9()()"cF85 Cam For 8Stitches
#G900-28 Needle Clamp Standard
(7.24
MM Diameter)
#G90G-5CR Screw For #G900S Blade
BACKTACKING ATTACHMENT
ON SWING-AWAY BRACKET
(pATENT#3123033)
• DeSigned to
fit
all standard overlocks.
• Installed In mlnuteS-feady for work.
• Your operator can obtain back tacking on the leading edges of seams
while overlocking attachment can swing awcry from sewing area when not
required,and in asplit second can be repositioned into working position.
ON SWING-AWAY BRACKETS, COMPLETE:
#A9457 For Union Special Class: 39500
#AS27o-X2-4452 (#920776410) For Rimoldi Machines
#MAP-80101·ZAO For Juki Class: MO-801
#SBT20 For Singer Classes: 246
&460
#5BT21 For Singer Class: 990B
#5BT22 For Merrow Machines
#5BT23 For Union Special Class:
39500
#5BT24 For Rimoldi Machines
#58T25 For Willcox
&
Gibbs Superlock Machines
#5BT26
For
Willcox &Gibbs Pegasus 515 Series Machines
#5BT27 For Yamato Machines
#5BT28 For Juki Class: M0-801
• Increased quality reduces handling, eliminates trimming and abartack
operation. adaptable for all overlock operatlons. Excellent for both knit and
woven goods.
REPLACEMENT PARTS FOR #A9457
#A9457A Knife
#A94578 Knife Screw
#A9457C Spring
#A9457D Spring Screw
#A9457ENut
#A9457F Washer
#A9457G Fulcrum Screw
#A9457H Fulcrum Nut
REPLACEMENT PARTS FOR #AS27G-X2-4452 (#920776410)
#3647B (#100458-0-10) Knne Screw
#2701PDB4042 (#203231-0-10) Guard Set Screw
#270X1-4482 #920782-0·10 Lower Spring
#270Xl-4462 !#920778-0-101 Guard
#270Xl-4502 #920785.().10 Upper Spring
REPLACEMENT PARTS FOR #MAP-8010HAO
#MAT-80103-Z00 Upper Spring
#55·606041o-TP Knife Screw
#MAT-80104-Z00 Lower Spring
#5S-706061o-5P Guard Set
#MAT-8010S-Z00 Knife
Screw
#MAT-80106-Z00 Guard
REPLACEMENT PARTS FOR AU SBT ON SWlNG·AWAY BRACKETS
SPRING
#5BT41
ALSO AVAILABLE:
GUARD
#5BT44
#5BT42 Screw
#5BT43 Washer
#5BT235C Mounting Screw for #5BT23 #58T45 Knife
49
