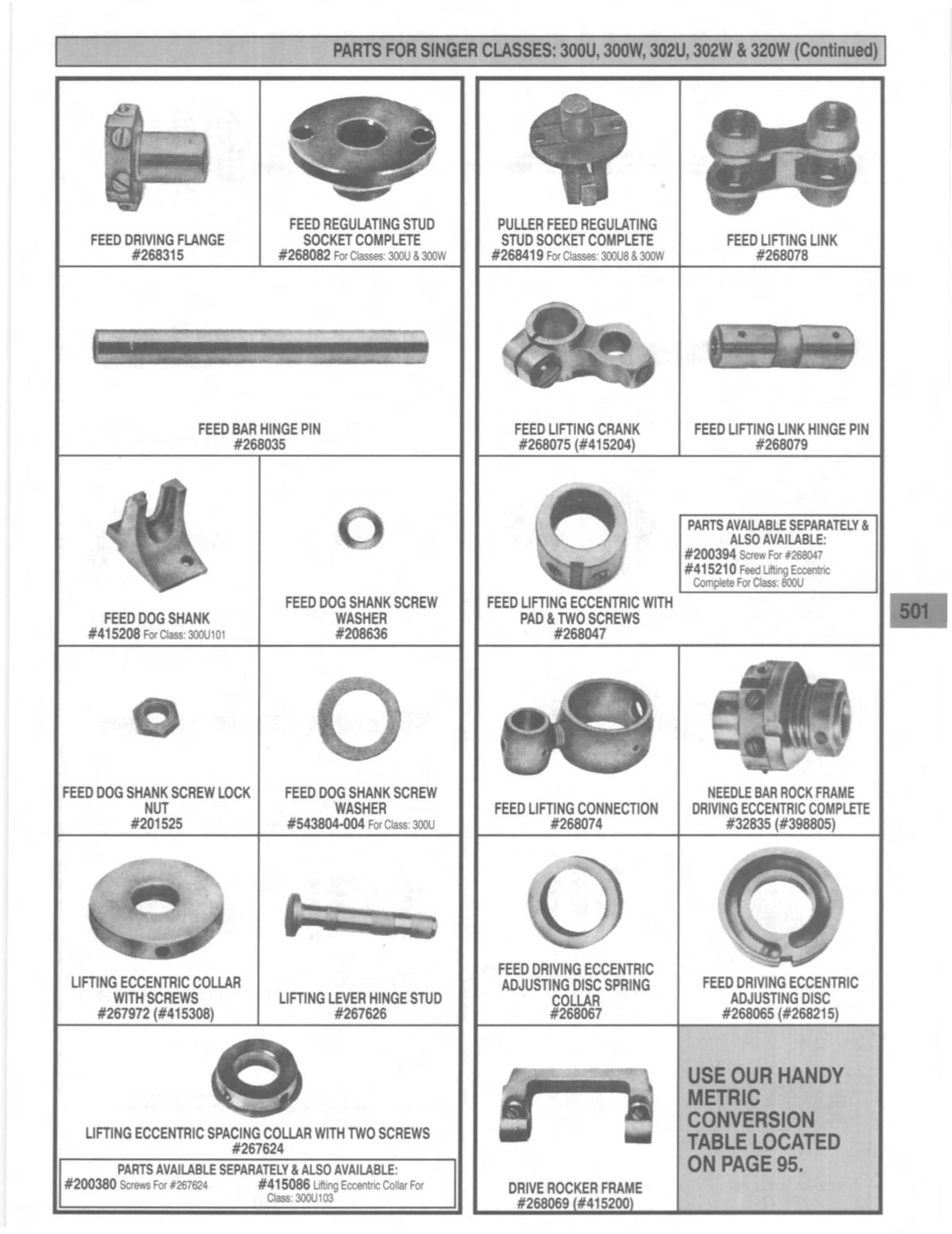

PARTS FOR SINGER CLASSES: 3OOU, 3OOW, 302U, 302W
&
320W
(Continued)
I
FEED DRIVING FLANGE
#268315
FEED REGULATING STUD
SOCKET COMPLETE
#268082
For
Classes:
300U
&
300W
FEED BAR HINGE PIN
#268035
FEED DOG SHANK
#415208
For
Class: 3OOU101
FEED DOG SHANK SCREW LOCK
NUT
#201525
LIFTING ECCENTRIC COLLAR
WITH SCREWS
#267972 (#415308)
FEED DOG SHANK SCREW
WASHER
#208636
FEED DOG SHANK SCREW
WASHER.
#543804-004
For Class: 300U
LIFTING LEVER HINGE smD
#267626
LIFTING ECCENTRIC SPACING COLLAR WITH TWO SCREWS
#267624
PARTS AVAILABLE SEPARATELY
&
ALSO AVAILABLE:
#200380
Screws
For
1267624
#415086
Ufling
ECCllf1tric
Collal
For
Oass: 3OOU103
PULLER FEED REGULATING
STUD SOCKET COMPLETE
#268419
For
Classes:
300U8
&
3fXJN
FEED LIFTING CRANK
#268075 (#415204)
FEED LIFTING ECCENTRIC WITH
PAD
&
TWO SCREWS
#268047
FEED LIFTING CONNECTION
#268074
FEED DRIVING ECCENTRIC
ADJUSTING DISC SPRING
COLLAR
#268067
FEED LIFTING LINK
#268078
FEED LIFTING LINK HINGE PIN
#268079
PARTS AVAILABLE SEPARATELY
&
ALSO AVAIlABLE:
#200394
Screw
For #268047
#415210
Feed
lrfung
Eccen1nc
Complete ForOass: 800U
NEEDLE BAR ROCK FRAME
DRIVING ECCENTRIC COMPLETE
#32835 (#398805)
FEED DRIVING ECCENTRIC
ADJUSTING DISC
#268065 (#268215)
I
USE OUR HANDY
I
METRIC
CONVERSION
TABLE LOCATED
ON PAGE 95.
