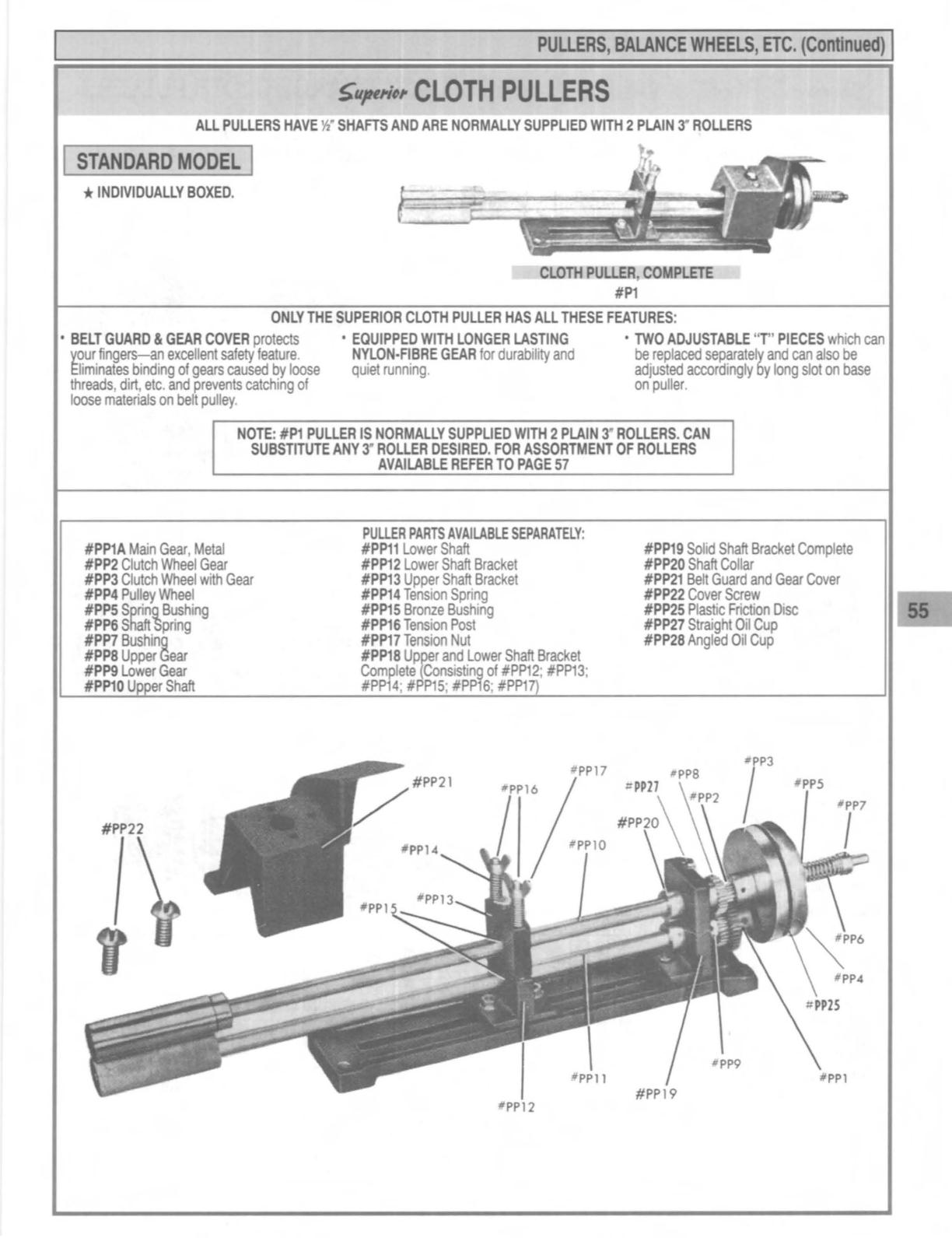

PUUERS, BAlANCE WHEELS, ETC. (Continued)
I
~IIJ1Ui'"
CLOTH PULLERS
ALLPULLERS HAVE
~.
SHAFTS AND ARE NORMALLY SUPPLIED WITH 2PLAIN3" ROLLERS
I
STANDARD MODEL
I
*
INDIVIDUALLY BOXED.
CLOTH
PUUER
COMl'lETE
#Pl
ONLYTHE SUPERIOR CLOTH PULLER HAS AU THESE FEATURES:
• BELT GUARD
&
GEAR COVER protects
your fingers-an excellent safety feature.
Eliminates binding of gears caused by loose
threads, dirt, etc. and prevents catching of
loose materials on belt pulley.
• EQUIPPED WrTH LONGER LASTING
NYLON·FIBRE GEAR for durability and
quiet running.
• TWO ADJUSTABLE
'T'
PIECES which
can
be
replaced separately and can also be
adjusted accordingly by long slot on base
on puller.
NOTE: #P1 PULLER IS NORMAllY SUPPLIED WITH 2PLAIN 3' ROLLERS. CAN
SUBSTITUTE ANY
3"
ROLLER DESIRED. FOR ASSORTMENT OF ROLLERS
AVAILABLE REFER TO PAGE
57
#PP1A Main Gear, Metal
#PP2 Clutch Wheel Gear
#PP3 Clutch Wheel
w~h
Gear
#PP4 Pulley Wheel
#PPS Spring Bushing
#PP6 Shaft Spring
#PP7 Bushing
#PP8
Upper Gear
#ppg
Lower Gear
#PP10 U
er Shaft
PULLER PARTSAVAILABLE SEPARATELY:
#PP11 Lower Shaft
#PP12Lower Shaft Bracket
#PP13Upper Shaft Bracket
#PP14 Tension Spring
#PP15Bronze Bushing
#PP16 Tension Post
#PP17 Tension Nut
#PP18Upp'er and Lower Shaft Bracket
Complete (Consisting of #PP12; #PP13:
#PP14; #PP15; #PPi6; #PP1
#PP12
#PP19Solid Shaft Bracket Complete
#PP20 Shaft Collar
#PP21 Belt Guard
and
Gear Cover
#PP22 Cover Screw
#PP25 Plastic Friction Disc
#PP27 Straight Oil Cup
#PP28 Angled Oil Cup
