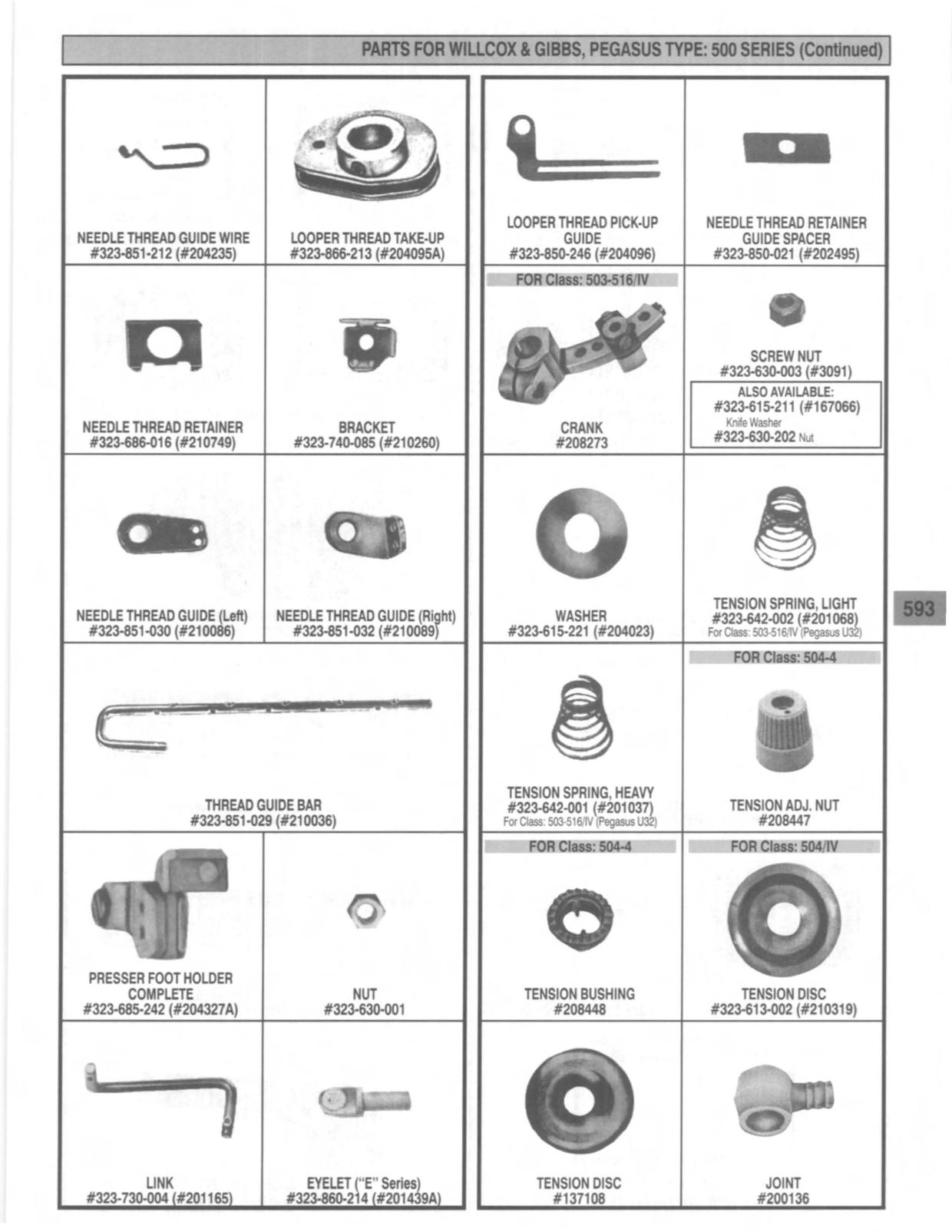

PARTS FOR WILLCOX
&
GIBBS, PEGASUS TYPE: 500 SERIES
(ConUnued)
I
NEEDLE THREAD GUIDE WlRE
#323-851·212 (#204235)
NEEDLE THREAD RETAINER
#323-686-016 (#210749)
NEEDLE THREAD GUIDE (Left)
#323·851·030 (#210086)
LOOPER THREAD TAKE·UP
#323·866-213 (#204095A)
BRACKET
#323·740-085 (#210260)
NEEDLE THREAD GUIDE (Right)
#323-851-032 (#210089) _
THREAD GUIDE
BAR
#323-851-029 (#210036)
PRESSER FOOT HOLDER
COMPLETE
#323-685·242 (#204327A)
NUT
#323-630-001
LOOPER THREAD
PICK~UP
GUIDE
#323-850-246 (#204096)
FOR Class: 503-516JIV
CRANK
#208273
WASHER
#323·615·221 (#204023)
TENSION SPRING, HEAVY
#323-642-001 (#201037)
For
Class: 503-S16/lV (Pegasus
lJ32)
FOR Class:
504-4
TENSION BUSHING
#208448
TENSION DISC
#137108
NEEDLE THREAD RETAINER
GUIDE SPACER
#32J.850-021 (#202495)
SCREW NUT
#323-630-003 (#3091)
ALSO AVAILABLE:
#323·615·211 (#167066)
KrnIe Washer
#323·630·202
Nut
TENSION SPRING, LIGHT
#323·642·002 (#201068)
For
CIass_
503-516IIV (Pegasus
lJ32)
FOR Class: 5044
TENSION ADJ. NUT
#208447
FOR Class: 504
TENSION DISC
#323-613-002 (#210319)
JOINT
#200136
