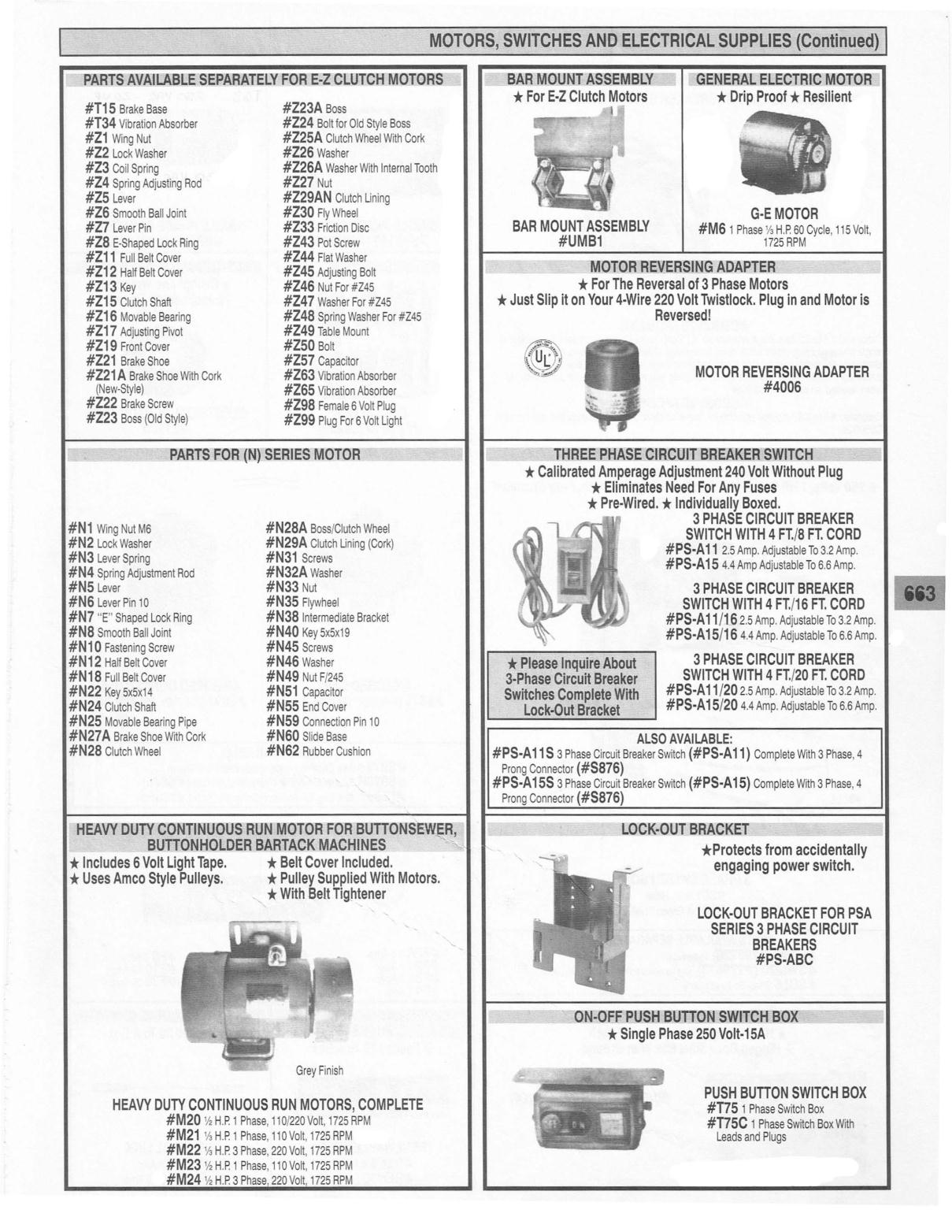

MOTORS, SWITCHES AND ELECTRICAL SUPPLIES (Continued)
I
PARTS AVAILABLE SEPARATELY FOR E·Z CLUTCH MOTORS
#T15
Brake Base
#T34
Vibration Absorber
#Z1
Wing Nut
#Z2
Lock Washer
#Z3
Coil Spring
#Z4
Spring Adjusting Rod
#Z5
Lever
#Z6
Smooth Ball Joint
#Z7
Lever Pin
#Z8
E-Shaped Lock Ring
#Z11
Fu ll Belt Cover
#Z12
Ha~
Belt Cover
#Z13
Key
#Z15
Clutch Shaft
#Z16
Movable Bearing
#Z17
Adjusting Pivot
#Z19
Front Cover
#Z21
Brake Shoe
#Z21 A
Brake Shoe With Cork
(New-Style)
#Z22
Brake Screw
#Z23
Boss (Old Style)
#Z23A
Boss
#Z24
Boltlor Old StyleBoss
#Z25A
Clutch Wheel With Cork
#Z26
Washer
#Z26A
Washer With Internal Tooth
#Z27
Nut
#Z29AN
Clutch Lining
#Z30
Fly Wheel
#Z33
Friction Disc
#Z43
Pot Screw
#Z44
Flat Washer
#Z45
Adjusting Bolt
#Z46
Nut For #Z45
#Z47
Washer For #Z45
#Z48
Spring Washer For #Z45
#Z49
Table Mount
#Z50
Bolt
#Z57
Capacitor
#Z63
Vibration Absorber
#Z65
Vibration Absorber
#Z98
Female 6Volt Plug
#Z99
Plug For 6Volt Light
PARTS FOR (N) SERIES MOTOR
#N1
Wing Nut M6
#N2
Lock Washer
#N3
Lever Spring
#N4
Spring Adjustment Rod
#N5
Lever
#N6
Lever Pin 10
#N7
"E" Shaped LockRing
#N8
Smooth Ball Joint
#N10
Fastening Screw
#N12
Half Belt Cover
#N18
Full Belt Cover
#N22
Key 5x5x14
#N24
Clutch Shaft
#N25
Movable Bearing Pipe
#N27A
Brake Shoe With Cork
#N28
Clutch Wheel
#N28A
Boss/Clutch Wheel
#N29A
Clutch Lining (Cork)
#N31
Screws
#N32A
Washer
#N33
Nut
#N35
Flywheel
#N38
Intermediate Bracket
#N40
Key 5x5x19
#N45
Screws
#N46
Washer
#N49
Nut F/245
#N51
Capacitor
#N55
End Cover
#N59
Connection Pin 10
#N60
SlideBase
#N62
Rubber Cushion
HEAVY DUTY CONTINUOUS RUN MOTOR FOR
BUnONSEW~R,
BUnONHOLDER BARTACK MACHINES
""
* Includes 6Volt Light Tape.
* Belt Cover Included.
* Uses Amco Style Pulleys.
* Pulley Supplied With Motors.
"
* With Belt Tightener
HEAVY DUTY CONTINUOUS RUN MOTORS,COMPLETE
#M20
v,
H.P. 1Phase, 110/220 von, 1725 RPM
#M21
Va
H.P.1 Phase, 110 Volt, 1725 RPM
#M22
Va
H.P. 3Phase, 220 Volt, 1725 RPM
#M23
v,
H.P.1 Phase, 110 von, 1725 RPM
#M24
v,
H.P. 3Phase, 220 von, 1725 RPM
BAR MOUNT ASSEMBLY
* For E·Z Clutch Motors
BAR MOUNT ASSEMBLY
#UMB1
GENERAL ELECTRIC MOTOR
* Drip Proof * Resilient
G·E MOTOR
#M6
1Phase
V3
H.P. 60 Cycle, 115 Volt ,
1725 RPM
MOTOR REVERSING ADAPTER
* For The Reversal of 3Phase Motors
* Just Slip it on Your 4·Wire 220 Volt Twistlock. Plug in and Motor is
Reversed!
MOTOR REVERSING ADAPTER
#4006
THREE PRASE CIRCUIT BREAKER SWITCH
* Calibrated Amperage
Adjustment 240
Volt Without Plug
* Eliminates Need For Any Fuses
* Pre·Wired. * Individually Boxed.
3PHASE CIRCUIT BREAKER
SWITCH WITH 4FT./8FT. CORD
#PS·A11
2.5 Amp. Adjustable To 3.2 Amp.
#PS·A15
4.4 Amp Adjustable To 6.6 Amp.
3PHASE CIRCUIT BREAKER
SWITCH WITH 4FT./16 FT. CORD
#PS·A11 /162.5
Amp. Adjustable To3.2 Amp.
#PS·A15/16
4.4 Amp. Adjustable To 6.6 Amp.
* Please Inquire About
3PHASE CIRCUIT BREAKER
3.Phase Circuit Breaker
SWITCH WITH 4FT./20 FT. CORD
Switches Complete With
#PS·A11 /20
2.5 Amp.Adjustable To3.2Amp.
Lock.Out Bracket
#PS·A15/20
4.4 Amp. Adjustable To 6.6 Amp.
~~~~~~~~~
ALSO AVAILABLE:
#PS·A11 S
3Phase Circuit Breaker Switch
(#PS·A11)
Complete With 3Phase, 4
Prong Connector
(#S876)
#PS·A15S
3Phase Circuit Breaker Switch
(#PS·A15)
Complete With 3Phase, 4
Prong Connector
(#S876)
LOCK·OUT BRACKET
*Protects from accidentally
engaging power switch.
LOCK·OUT BRACKET FOR PSA
SERIES 3PHASE CIRCUIT
BREAKERS
#PS·ABC
ON·OFF PUSH BUnON SWITCH BOX
* Single Phase 250 Volt·15A
PUSH BUnON SWITCH BOX
#T751
Phase Switch Box
#n5C
1Phase Switch BoxWith
Leads and Plugs
